MP104 Standard

Standard features

• Electronic programmable coin verifier and coin shutter.
• Intelligent, auto-calibrating antipin module that protects the coin verifier.
• Motor driven pre-collection unit with a volume of 0.2 litres, or approximately 100 coins.
• High-security cash protection.
• Self-locking coin box.
• Secure, flexible lock system with easily exchangeable locks.
• Thermal printer with high-quality printout.
• Ticket with 75 or 100 mm length and 57 mm width.
• Tickets on roll (4500 pcs) or Z-folded (9000 pcs)
• Alphanumeric display, 2 lines of 20 characters, with automatic back-light adjustment.
• LED and LCD indication on the display for information about servicing needs.
• Customer-specific data loaded via modem or PC card (PCMCIA). No EPROM change required.
• Cabinet and base made of stainless steel painted in a standard RAL colour.
• Power supply from battery only or street light.

Options

• Slit or insertion type card reader for credit cards with magnetic stripe.
• Black list handling of up to 800,000 credit cards.
• Chip card reader for payment with chip cards (including electronic purse).
• Pay by space function.
• Post (real time) payment.
• Control of external equipment such as gates and electric power points (sockets).
• Communication between terminals in a local network and between the network or stand alone terminals
• Cabinet and base painted with the desired non standard RAL colour.
• Power from solar cell panel only or in combination with mains.
• Price £3450.00 excl VAT and Installation

One of the key advantages of the MP104 Standard terminal lies in its modular design, which means that the terminal can be configured to suit a wide range of applications where unattended payment is required.

The MP104 terminal, which has been specifically designed to provide extremely high levels of security, can accept coins or various types of cards, or a combination of both means of payment. The MP 104 offers easy and flexible tariff management, as well as the possibility of displaying user instructions in various languages.

Ref: MP104 Standard

Pay & Display Vision SI

Technologies

• Solar Powered - Environmentally Friendly
• Low power consumption
• Smart Card / Magnetic Stripe
• GSM / GPRS
• Infra-Red
• Flash Programmable
• Features & Options
• High Security - 12 Point Locking
• Electronic Locking
• Intruder Alarm
• Vandal Resistant
• Coin Slot Blocker
• Reliable - Proven Worldwide
• Stainless Steel Modular Construction
• User Programmable Multiple Tariffs
• Self Diagnosis and Fault Finding
• Detailed Audit Reporting
• Network Capability
• Thermal Printing
• Euro Ready
• Multi Currency
• Multi Lingual
• Alphanumeric Keypad
• Small Footprint
• Graffiti-Proof Lacquer Coating
• Price: £3500.00 excl VAT and installation

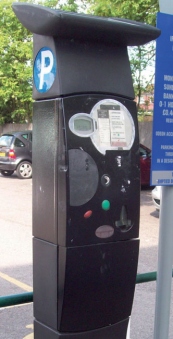

The Vision SI is versatile and adaptable.
Designed to meet the significant demands
of the Pay and Display environments worldwide.

Ref: Vision SI
